Stacked bar

Stacked bar chart.

StackedBar

Bases: _AxisChart

Stacked bar chart showing cumulative data across categories.

Supports multiple datasets rendered as vertically stacked segments. Set normalize=True for a 100% stacked bar chart.

Parameters:

Name Type Description Default
title str | None

Chart title.

 None
x_label str | None

Label for the x-axis.

 None
y_label str | None

Label for the y-axis.

 None
labels Any

Category names for the x-axis.

 required
datasets Any

List of dataset dicts, each with data (list of numeric values) and label (str) keys.

 required
options Any

Dict of chart options.

 None

Options:

  • backgroundColor (str): Background color (default 'white').
  • dataColors (list[str]): Segment colors.
  • fontFamily (str): Font family (default 'xkcd').
  • legendPosition (int): Legend placement (use positionType).
  • normalize (bool): Scale each column to 100% (default False).
  • showLegend (bool): Show legend (default True).
  • strokeColor (str): Axis/border color (default 'black').
  • unxkcdify (bool): Disable hand-drawn style (default False).
  • yMin (float): Minimum y-axis value (default 0).
  • yMax (float): Maximum y-axis value (default data max or 100 when normalize=True).
  • yTickCount (int): Number of y-axis ticks (default 3).

Example — stacked::

StackedBar(
    title="Inventory",
    x_label="Quarter",
    y_label="Units",
    labels=["Q1", "Q2", "Q3"],
    datasets=[
        {"data": [10, 20, 30], "label": "Widgets"},
        {"data": [5, 15, 10], "label": "Gadgets"},
    ],
)

Example — 100% stacked::

StackedBar(
    title="Market Share",
    labels=["2022", "2023", "2024"],
    datasets=[
        {"data": [40, 45, 50], "label": "Product A"},
        {"data": [60, 55, 50], "label": "Product B"},
    ],
    options={"normalize": True, "yTickCount": 5},
)
Source code in src/chart_xkcd/stacked_bar.py
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
class StackedBar(_AxisChart):
    """Stacked bar chart showing cumulative data across categories.

    Supports multiple datasets rendered as vertically stacked segments.
    Set ``normalize=True`` for a 100% stacked bar chart.

    Args:
        title: Chart title.
        x_label: Label for the x-axis.
        y_label: Label for the y-axis.
        labels: Category names for the x-axis.
        datasets: List of dataset dicts, each with ``data`` (list of numeric
            values) and ``label`` (str) keys.
        options: Dict of chart options.

    Options:

    - ``backgroundColor`` (str): Background color (default ``'white'``).
    - ``dataColors`` (list[str]): Segment colors.
    - ``fontFamily`` (str): Font family (default ``'xkcd'``).
    - ``legendPosition`` (int): Legend placement (use ``positionType``).
    - ``normalize`` (bool): Scale each column to 100% (default False).
    - ``showLegend`` (bool): Show legend (default True).
    - ``strokeColor`` (str): Axis/border color (default ``'black'``).
    - ``unxkcdify`` (bool): Disable hand-drawn style (default False).
    - ``yMin`` (float): Minimum y-axis value (default 0).
    - ``yMax`` (float): Maximum y-axis value (default data max or 100 when
      ``normalize=True``).
    - ``yTickCount`` (int): Number of y-axis ticks (default 3).

    Example — stacked::

        StackedBar(
            title="Inventory",
            x_label="Quarter",
            y_label="Units",
            labels=["Q1", "Q2", "Q3"],
            datasets=[
                {"data": [10, 20, 30], "label": "Widgets"},
                {"data": [5, 15, 10], "label": "Gadgets"},
            ],
        )

    Example — 100% stacked::

        StackedBar(
            title="Market Share",
            labels=["2022", "2023", "2024"],
            datasets=[
                {"data": [40, 45, 50], "label": "Product A"},
                {"data": [60, 55, 50], "label": "Product B"},
            ],
            options={"normalize": True, "yTickCount": 5},
        )
    """

    def __init__(
        self,
        *,
        title: str | None = None,
        x_label: str | None = None,
        y_label: str | None = None,
        labels: Any,
        datasets: Any,
        options: Any = None,
    ):
        _check_labels_datasets(labels, datasets, "StackedBar")
        data = {"labels": list(labels), "datasets": list(datasets)}
        super().__init__(
            title=title, x_label=x_label, y_label=y_label, data=data, options=options
        )

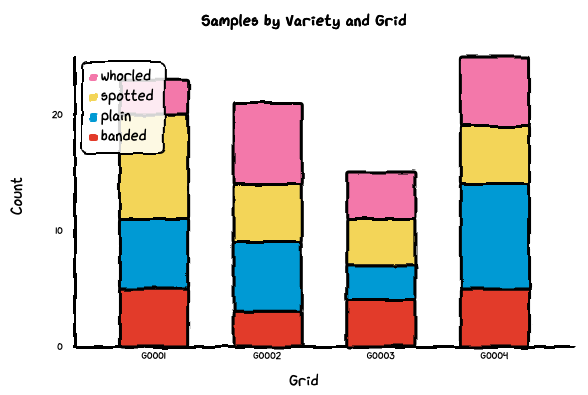

example
